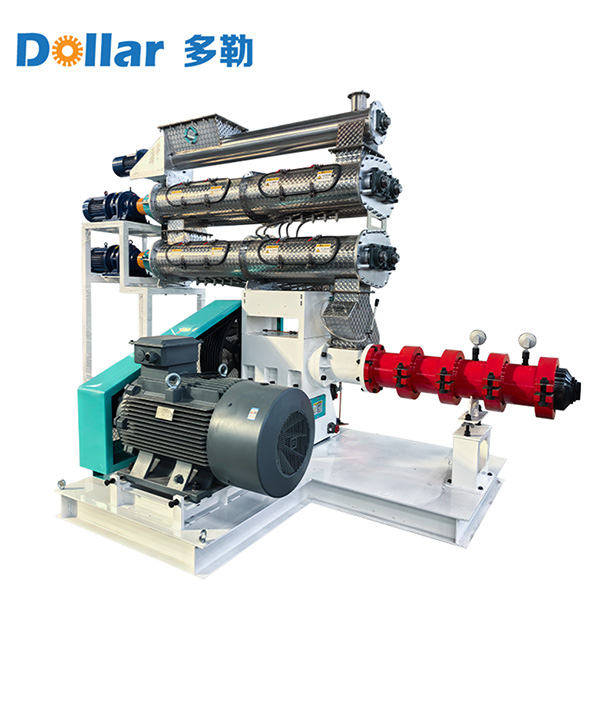

Dollar EXP200S Series 160kw Wet Extruder

The main power of this extruder is 160kw, the feeding power is 3kw, the conditioning power is 5.5kw, the cutting power is 3kw. It can produce 3.6-5.0 tons per hour. The machine weighs 4600kg.

Variable frequency speed control feeding: Precisely control the feeding volume, stabilize the extrusion effect, save energy and extend the equipment lifespan.

Variable frequency speed control feeding: The feeding speed and feeding volume can be more precisely controlled, stabilize the extrusion effect, save energy and extend the equipment lifespan.

Double-axis differential stainless steel conditioner: The steam control is more convenient, precise, and achieves uniformity, high maturation, and anti-blockage conditioning effect through differential motion.

Overall casting process of the bearing box: The bearing box is manufactured using the overall casting process, significantly improving the structural stability, laying a solid foundation for the long-term stable operation of the equipment, and extending the equipment's service life.

Independent cooling system configuration: Provides stable, efficient, and long-lasting cooling force for the bearing box, effectively preventing equipment failures and shutdowns caused by high temperatures.

Strong processing capacity and wide adaptability: Relying on a 200mm diameter screw and optimized pitch design, the production capacity of a single unit can typically reach 4-5 tons, suitable for continuous production in large-scale feed factories (can be combined with automatic feeding, cooling, and packaging systems to form a production line).

Thorough sterilization, high safety:In a high-temperature and high-pressure environment, it can effectively kill pathogenic bacteria such as Salmonella and Escherichia coli in the feed (sterilization rate above 99%), while inhibiting the growth of molds such as aflatoxin, reducing the risk of animal diseases; in addition, the moisture of the extruded feed is reduced to below 10% by the subsequent cooling system, the shelf life is extended to 3-6 months, and it is not prone to mold.

Producing high-quality and safe feed: The EXP200S series of wet extruders in Dolle have urease activity in the range of 0.01-0.1, far below the national standard of 0.2.

Send Email Inquiry Now

Product Introduction

1. 6000 square meter self-built extrusion equipment factory, source factory of soybean extrusion machines

2. Core technology independently developed, efficiency of extrusion units increased by 20%, energy consumption reduced by 15%

3. The company's business covers more than 20 countries around the world, meeting the needs of multiple scenarios such as breeding, feed processing, and oil production

4. Full-cycle services covering process design, equipment installation, commissioning and optimization

Product Advantages

Product parameters of Dollar Soybean Puffing Machine:

The bearing box is integrally cast and forged, which increases the weight by approximately 100 kilograms compared to similar products on the market!
The motor is a first-class brand from Siemens, which is durable and has strong power!
The bearings are of the German imported FAG (Schaeffler) brand, with an average lifespan that is 2-3 years longer than those made in China!
Technologies such as quantitative water injection, oil and lubricant water cooling heat exchange, automatic alarm, and double sealing of the bearing chamber reduce the failure rate of the machine!

Product parameters

Product parameters
Model number	Power （KW）	Production capacity （T/H）	Machine weight (KG)	Machine size (meter)
EXP140S	75	1.3-1.8	2500	Length: 3.6 \| Width: 2.11 \| Height: 1.95
EXP140S	90	1.6-2.3	2800	Length: 3.6 \| Width: 2.11 \| Height: 1.95
EXP160S	110	2.0-2.6	3200	Length: 2.38 \| Width: 2.21 \| Height: 2.06
EXP200S	132	3.3-4.3	4260	Length: 4.56 \| Width: 2.31 \| Height: 2.31
EXP200S	160	3.6-5.0	4600	Length: 4.56 \| Width: 2.31 \| Height: 2.31
