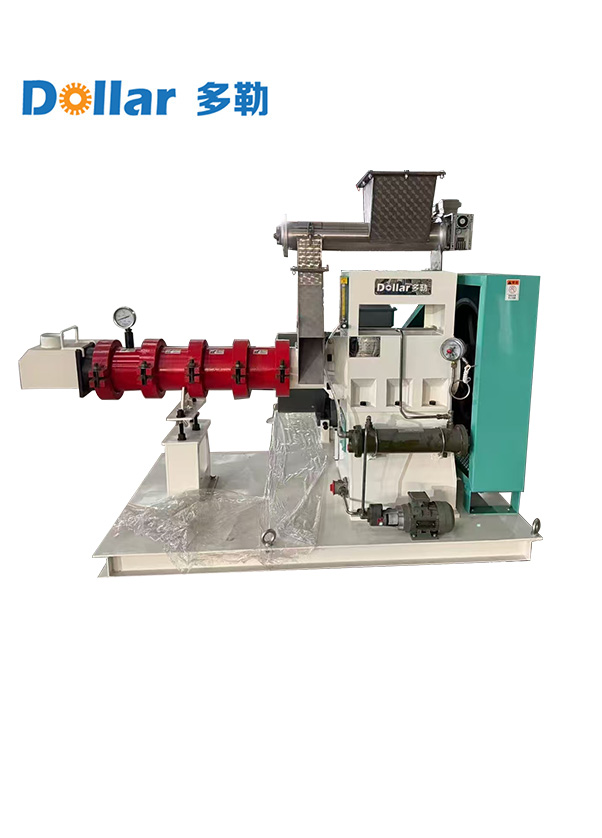

Dollar EXP160G Series 110kw Dry Extruder

The power of this extruder's main unit is 110kw, the feeding power is 0.75kw, the cutting power is 2.2kw, and it can produce 1.8-1.6 tons per hour. The machine weighs 2650kg.

The bearing box is manufactured using an integral casting process, which significantly enhances the structural stability and lays a solid foundation for the long-term stable operation of the equipment. At the same time, it extends the service life of the equipment.

The optimized screw configuration and unique discharge cavity design effectively reduce the resistance in the extrusion chamber, improving production capacity.

The connection design of the extrusion chamber using the clamp fastening method ensures the connection strength between the chambers while making installation and disassembly more convenient and quick.

It can handle various feed raw materials, such as grains, soybean meal, cottonseed, etc. It can adjust parameters according to different needs to produce different specifications and nutritional characteristics of extruded feed.

It improves the quality of the materials. During the extrusion process, the starch in the raw materials is gelatinized and the proteins are denatured, increasing the digestibility and absorption rate of the materials. The extruded materials have a good taste and are highly palatable.

The new design has enhanced the bearing capacity of the main shaft part for thrust and torsion, and the thrust bearing uses a German original imported product.

It is intelligent and convenient, using a centralized analog screen control, with high automation level, simple operation, reducing manual intervention, and improving the stability and controllability of production.

Send Email Inquiry Now

Product Introduction

1. 6000 square meter self-built extrusion equipment factory, source factory of soybean extrusion machines

2. Core technology independently developed, efficiency of extrusion units increased by 20%, energy consumption reduced by 15%

3. The company's business covers more than 20 countries around the world, meeting the needs of multiple scenarios such as breeding, feed processing, and oil production

4. Full-cycle services covering process design, equipment installation, commissioning and optimization

Product Advantages

Product parameters of Dollar Soybean Puffing Machine:

The bearing box is integrally cast and forged, which increases the weight by approximately 100 kilograms compared to similar products on the market!
The motor is a first-class brand from Siemens, which is durable and has strong power!
The bearings are of the German imported FAG (Schaeffler) brand, with an average lifespan that is 2-3 years longer than those made in China!
Technologies such as quantitative water injection, oil and lubricant water cooling heat exchange, automatic alarm, and double sealing of the bearing chamber reduce the failure rate of the machine!

Product parameters

Product parameters
Model number	Power （KW）	Production capacity （T/H）	Machine weight (KG)	Machine size (meter)
EXP140G	55	0.45-0.65	1950	Length: 2.11 \| Width: 2.35 \| Height: 1.67
	75	0.7-0.85	2100
	90	0.85-1.1	2200
EXP160G	110	1.3-1.6	2650	Length: 2.21 \| Width: 2.45 \| Height: 1.68
EXP200G	132	1.8-2.3	3700	Length: 2.31 \| Width: 2.6 \| Height: 1.75

Shipping And After Sales

Choose reliable logistics

1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.

2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.

Arrival and acceptance guide

1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.

2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
