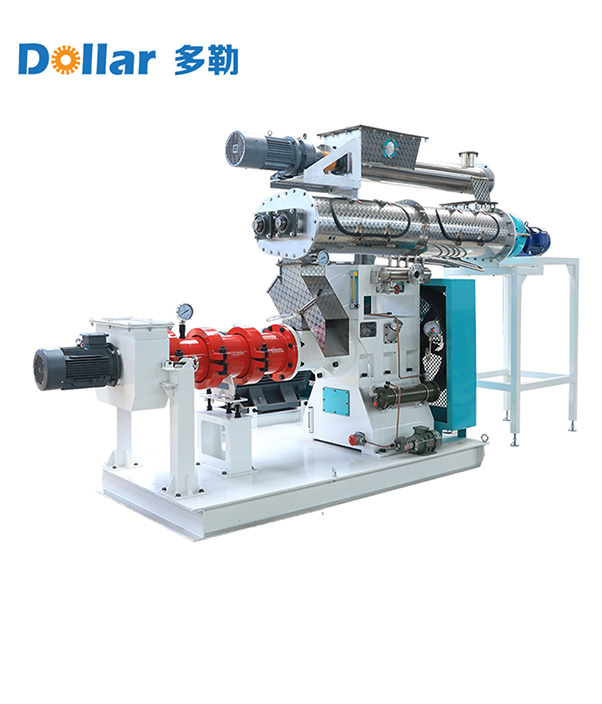

Dollar EXP200S Series 132kw Wet Extruder

The main power of this extruder is 132kw, the feeding power is 3kw, the conditioning power is 5.5kw, the cutting power is 3kw. It can produce 3.3-4.3 tons per hour. The machine weighs 4260kg.

Variable frequency speed control feeding: The feeding speed and feeding volume can be more precisely controlled, resulting in a stable extrusion effect, energy saving and cost reduction, and prolonging the equipment lifespan.

Double-axis differential stainless steel conditioner: The steam control is more convenient and precise. Through differential motion, it achieves uniformity, high maturation, and prevents clogging, resulting in a conditioning effect.

Overall casting process of the bearing box: The bearing box is manufactured using the overall casting process, significantly enhancing structural stability, laying a solid foundation for the long-term stable operation of the equipment, and extending the equipment's service life.

Independent cooling system: It provides stable, efficient, and long-lasting cooling force for the bearing box, effectively preventing equipment failures and shutdowns caused by high temperatures.

Strong processing capacity and wide adaptability: Relying on a 200mm diameter screw and optimized pitch design, the production capacity of a single unit can typically reach 4-5 tons, suitable for continuous production in large-scale feed factories (can be combined with automatic feeding, cooling, and packaging systems to form a production line).

Thorough sterilization, high safety:In a high-temperature and high-pressure environment, it can effectively kill pathogenic bacteria such as Salmonella and Escherichia coli in the feed (sterilization rate above 99%), while inhibiting the growth of molds such as aflatoxin, reducing the risk of animal diseases; in addition, the moisture content of the extruded feed is reduced to below 10% by the subsequent cooling system, extending the shelf life to 3-6 months, and reducing the risk of mold growth.

Producing high-quality and safe feed: The wet extrusion machine of the Dole EXP200S series has a urease activity of the extruded soybeans ranging from 0.01 to 0.1, far below the national standard of 0.2.
