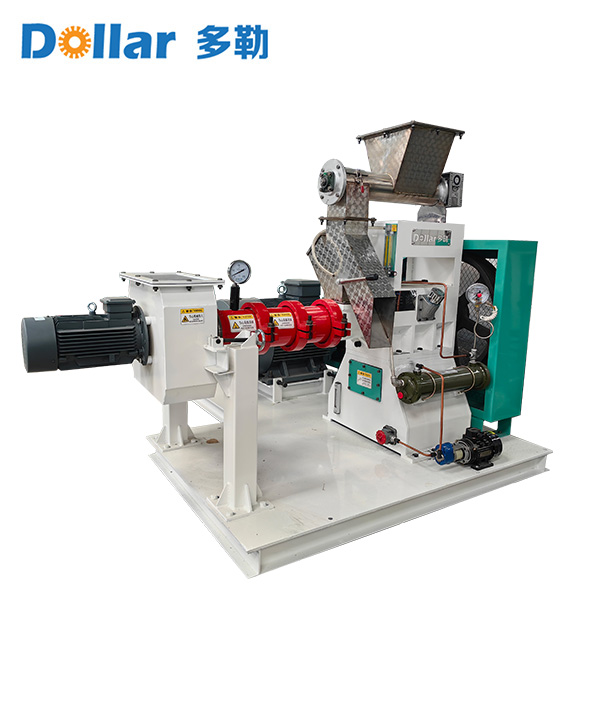

Dollar EXP140G Series 90kw Dry Extruder

The main power of this extruder is 90kw, the feeding power is 0.75kw, the cutting power is 2.2kw. It can produce 0.85-1.1 tons per hour. The machine weighs 2200kg.

It has an independent oil cooling system: through precise temperature control and efficient heat dissipation, it enhances the performance of the equipment from multiple aspects such as lubrication protection, energy consumption control, and production stability.

It can be fed by variable frequency separately, and an additional bypass device can form a high-efficiency system of "precise control + stable guarantee".

The new design has enhanced the bearing capacity of the main shaft for thrust and torque. The thrust bearing uses original German products.

The specially designed feeding section enables the material to smoothly enter the extrusion section, ensuring no blockage or backflow.

The machine cavity can form a high-temperature (usually 110-180°C) and high-pressure environment, which can effectively kill harmful substances such as bacteria and insect eggs in the raw materials, improving the hygiene and safety of the feed.

The automation level is high. It uses mechanical transmission and electrical control to achieve continuous production, reducing manual intervention and improving production efficiency.

Send Email Inquiry Now

Product Introduction

1. 6000 square meter self-built extrusion equipment factory, source factory of soybean extrusion machines

2. Core technology independently developed, efficiency of extrusion units increased by 20%, energy consumption reduced by 15%

3. The company's business covers more than 20 countries around the world, meeting the needs of multiple scenarios such as breeding, feed processing, and oil production

4. Full-cycle services covering process design, equipment installation, commissioning and optimization

Product Advantages

Product parameters of Dollar Soybean Puffing Machine:

The bearing box is integrally cast and forged, which increases the weight by approximately 100 kilograms compared to similar products on the market!
The motor is a first-class brand from Siemens, which is durable and has strong power!
The bearings are of the German imported FAG (Schaeffler) brand, with an average lifespan that is 2-3 years longer than those made in China!
Technologies such as quantitative water injection, oil and lubricant water cooling heat exchange, automatic alarm, and double sealing of the bearing chamber reduce the failure rate of the machine!

Product parameters

Product parameters
Model number	Power （KW）	Production capacity （T/H）	Machine weight (KG)	Machine size (meter)
EXP140G	55	0.45-0.65	1950	Length: 2.11 \| Width: 2.35 \| Height: 1.67
	75	0.7-0.85	2100
	90	0.85-1.1	2200
EXP160G	110	1.3-1.6	2650	Length: 2.21 \| Width: 2.45 \| Height: 1.68
EXP200G	132	1.8-2.3	3700	Length: 2.31 \| Width: 2.6 \| Height: 1.75

Shipping And After Sales

Choose reliable logistics

1. Co-operation with excellent carriers: By cooperating with world-renowned logistics partners, we provide high-quality logistics services with full traceability to ensure timely and accurate delivery around the world.

2. Full tracking: We are committed to safe and efficient packaging methods to ensure the integrity of the equipment during long-distance transportation.

Arrival and acceptance guide

1. Unpacking guide: Detailed unpacking and inspection tips are attached with the shipment, instructing customers how to open the package safely and check the condition of the excavator.

2. After-sales service: Provide 24-hour online technical assistance to ensure that subsequent problems can be solved in a timely manner.
